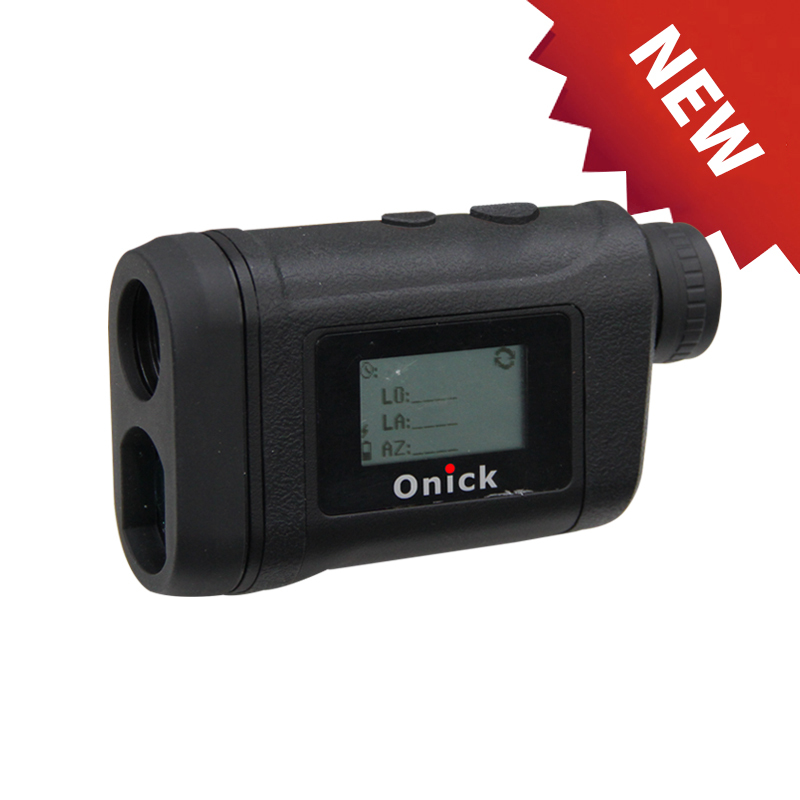

Onick 3000X Multifunction Laser Rangefinder
Onick 3000X Multifunction Laser Rangefinder
- Detail
- Parameters
Product description
The Onick 3000X laser range finder can be widely used in many outdoors activities, such as electrical engineering survey, forestry engineering survey, construction survey, water conservancy project survey. Its characteristics are continuous measurement, horizontal distance measurement, vertical distance measurement, height measurement，Measuring area (circular, rectangular)mode.
Product information
Model | Onick 3000X |
Distance range | 0m-3000m (general target) 0-3500m (high anti-target) |
accuracy | ±0.2m (<200m) ±0.2-1m (>200m) |
Display | Internal and external LCD display |
Magnification | 8.0X |
Objective lens diameter | Φ26mm |
Receiving diameter | 32x26mm |
Exit pupil diameter | Φ3.7mm |
Field of view | 6° |
Exit pupil distance | 18.8mm |
Diopter | ±4dpt |
Working temperature | ﹣10~＋50℃ |
Laser eye safety | Yes |
Focusing method | eyepiece focusing |
Measurement tips | vibration |
Protection level | IPX4 |
Bluetooth serial port | √ can be connected to APP |
Area measurement | √ round, rectangular |
GPS | √ Display the longitude and latitude of the coordinate point |
Azimuth | √ |
Ranging from any two points in space | √ |
External display screen | √ |
Data storage | 7 groups |
Rechargeable | Yes, charging tips |
Product size | 126*79.5*44mm |
Net weight | 246g |
Measurement mode | single measurement, scanning measurement, height measurement, angle measurement, horizontal distance, height difference measurement、Measuring area (circular, rectangular) |
Tripod | Support |
Battery | 1200MA/H rechargeable lithium battery |
